CARBON, ALLOY, STAINLESS STEEL FORGED THREADED PIPE FITTINGS

MANUFACTURER/EXPORTER of HIGH QUALITY THREADED FITTINGS – ASME B16.11

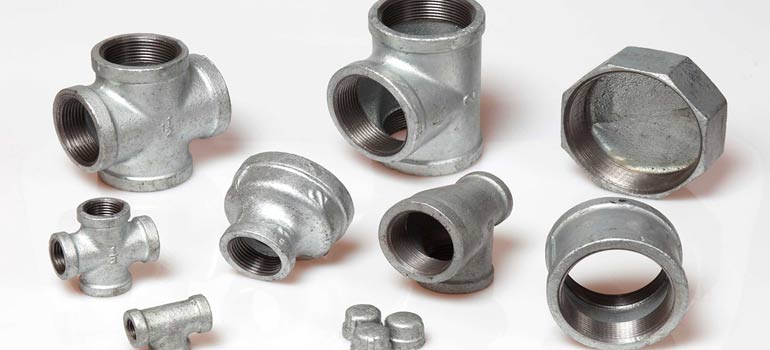

THREADED ELBOW, THREADED TEE, THREADED CROSS, THREADED UNION, THREADED COUPLING

Metro Forge & Fittings is one of the prominent manufacturer, exporter and supplier of forged threaded pipe fittings manufactured in accordance to ASME B16.11. Forged threaded pipe fittings are available ex-stock in all major stainless steel grades (ASTM A182 F316L, F304L) and ASTM A105. We are constantly adding to our diverse product range in order to better serve our valued customers.

We offer various types of forged threaded fittings including threaded elbow, threaded tee, threaded cross, threaded bends, threaded coupling, threaded caps, threaded union, hexagon bushing, square plugs, and hexagon plugs. We also manufacture and supply fittings specially manufactured to meet your custom requirements in a variety of stainless steel and special alloy grades.

High Pressure Threaded Pipe Fittings

Pressure Class	2000LBS, 3000LBS, 6000LBS
Products	Elbow 90 Degree, Elbow 45 Degree, Tee, Cross, Union, Street Elbow, Coupling, Half Coupling, Reducing Coupling, Cap, Hex Head Bushing, Hex Head Plug, Square Head Plug, Round Head Plug, Bull Plug, Boss, Outlet, Hex Nipple, Swage Nipple
Dimension Specifications	ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size	1/8″~4″ (DN6~DN100)

Forged Pipe Fittings Manufacturing Standards

ASTM A182 – ASME SA182	Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASME B16.9	Factory-Made Wrought Buttwelding Fittings
ASME B16.11	Forged Fittings, Socket – Welding and Threaded
MSS SP-43	Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
MSS SP-95	Swage(d) Nipples and Bull Plugs
BS3799	Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry

BS3799 – Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry

Forged Threaded Stainless Steel Fittings

Stainless Steel – ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L

• The material for forged stainless steel fittings conforms to ASME A182
• The dimensions for forged stainless steel fittings conform to ASME B16.11
• NPT Threads conform to ASME B1.20.1

Forged Threaded Carbon Steel Fittings

Carbon Steel ASTM A105, A350 LF2, A106 Gr.B, A234 WPB

• The material for forged carbon steel fittings conforms to the requirements of ASTM/ASME A105/SA105 The dimensions for forged carbon steel fittings conform to ASME B16.11
• NPT Threads conform to ASME B1.20.1

Marking & Packing

Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All forged fittings are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.

Quality Assurance

At Metro Forge & Fittings , all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.

Test Certificates

Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report
