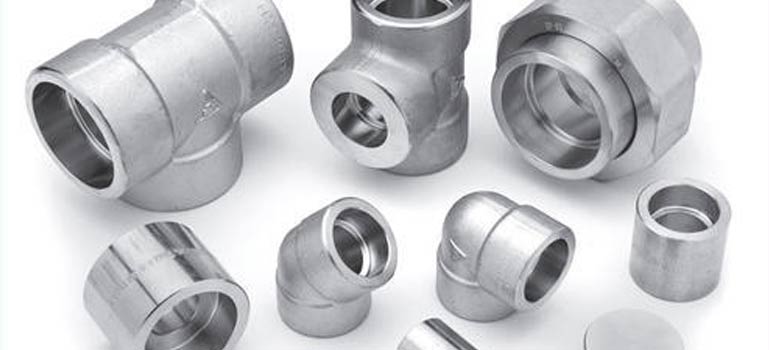

Socket Weld Fittings

CARBON, ALLOY, STAINLESS STEEL FORGED SOCKET WELD FITTINGS
MANUFACTURER/EXPORTER of HIGH QUALITY SOCKET WELD FITTINGS – ASME B16.11
SOCKET WELD ELBOW, SOCKET WELD TEE, SOCKET WELD CROSS, SOCKET WELD UNION, SOCKET WELD COUPLING

Metro Forge & Fittings one of the prominent manufacturer, exporter and supplier of forged socket weld fittings manufactured in accordance to ASME B16.11. Forged socket weld fittings are available ex-stock in all major stainless steel grades (ASTM A182 F316L, F304L), carbon steel and alloy steel grades. We offer various types of socket weld fittings including socket weld elbow, socket weld tees, socket weld cross, and more. Socket weld fittings are widely used in piping systems across major industries such as petrochemicals, power generation, ship building, diary industry, breweries, waste water treatment, chemical, pharmaceuticals and others.

Socket weld fittings are available in pressure ratings of class 3000, 6000 and 9000. We are constantly adding to our diverse product range in order to better serve our valued customers.


High Pressure Socket Weld Forged Fittings

Pressure Class 3000LBS, 6000LBS, 9000LBS
Products Elbow 90 Degree, Elbow 45 Degree, Tee, Cross, Union, Coupling, Half Coupling, Cap, Boss, Outlet, Welding Outlet, Insert
Dimension Specifications ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8″~4″ (DN6~DN100)

Forged Pipe Fittings Manufacturing Standards

ASTM A182 – ASME SA182 Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASME B16.9 Factory-Made Wrought Buttwelding Fittings
ASME B16.11 Forged Fittings, Socket – Welding and Threaded
MSS SP-43 Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
MSS SP-95 Swage(d) Nipples and Bull Plugs
BS3799 Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry

Forged Socket Weld Stainless Steel Fittings

Stainless Steel – ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L
The material for forged stainless steel fittings conforms to ASME A182
The dimensions for forged stainless steel fittings conform to ASME B16.11

Forged Socket Weld Carbon Steel Fittings

Carbon Steel ASTM A105, A350 LF2, A106 Gr.B, A234 WPB

The material for forged carbon steel fittings conforms to the requirements of ASTM/ASME A105/SA105 The dimensions for forged carbon steel fittings conform to ASME B16.11

Marking & Packing

Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All forged fittings are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.

Quality Assurance

At Metro Forge & Fittings , all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.

Test Certificates:

Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report
